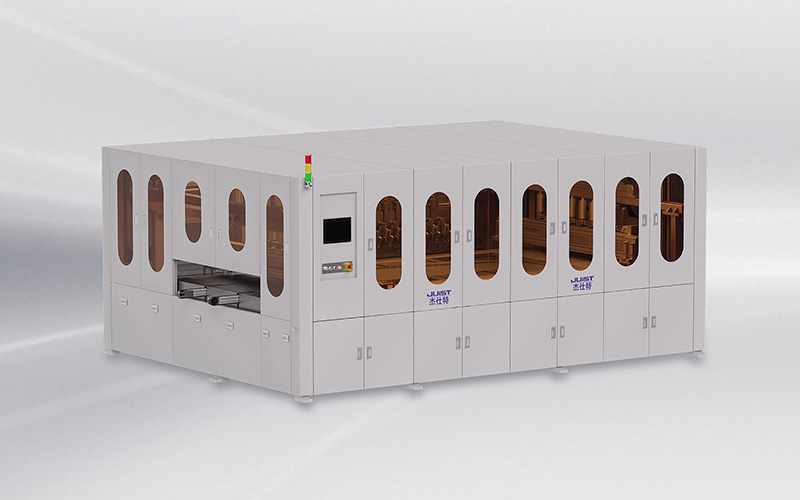

設備用途：適用于光伏玻璃背板膠帶貼膠工藝。
Equipment use: Suitable for fully automatic photovoltaic backplane
特點：
1. 玻璃輸送、精準定位、橫向貼膠條、縱向貼膠條、自動加熱、膠 帶自動剪斷、實現全自動生產，易于操作。
2. 輸送采用進口同步防滑帶傳動平穩，低噪音低，設計皮帶安裝 調節快捷方便，利于維護。
3. 玻璃定位，采用伺服電機中心定位方式，確保玻璃對位精準。
4. 貼膠頭間距采用數字化設置，快速設置好貼膠機的中心位置。
5. 長邊及短邊貼膠機數量可根據客戶產品要求個性化的定制。
6. 貼膠采用溫度貼膠，溫度在常溫 -160°可調。
7. 控制系統采用進口 PLC 可編寫控制系統和人機界面。
8. 本機設有自動報警裝置及周邊安全保護開關，并可選擇配置 氣動機械安全保護裝置，確保安全生產。
Features:
1.Glass conveying, accurate positioning, horizontal adhesivestrip, longitudinal adhesive strip, automatic heating, automatictape cutting, automatic production, easy to operate.
2.The transmission adopts imported synchronous non-slipbelt, low noise, fast and convenient installation and adjustmenof the design belt, which is conducive to maintenance.
3. Glass positioning, using the servo motor center positioningmode, to ensure that the glass alignment is accurate.
4. The spacing between adhesive heads is set digitally toquickly set the central position of the adhesive machine.
5. The number of long side and short side gluing machines carbe customized according to customer product requirements.
6. The adhesive adopts temperature adhesive, and thetemperature can be adjusted at room temperature -160°.
7. The control system adopts imported PLC to write controlsystem and man-machine interface.
8. The machine is equipped with automatic alamm device andperipheral safety protection switch, and can optionallyconfigure pneumatic mechanical safety protection device toensure safe production.
